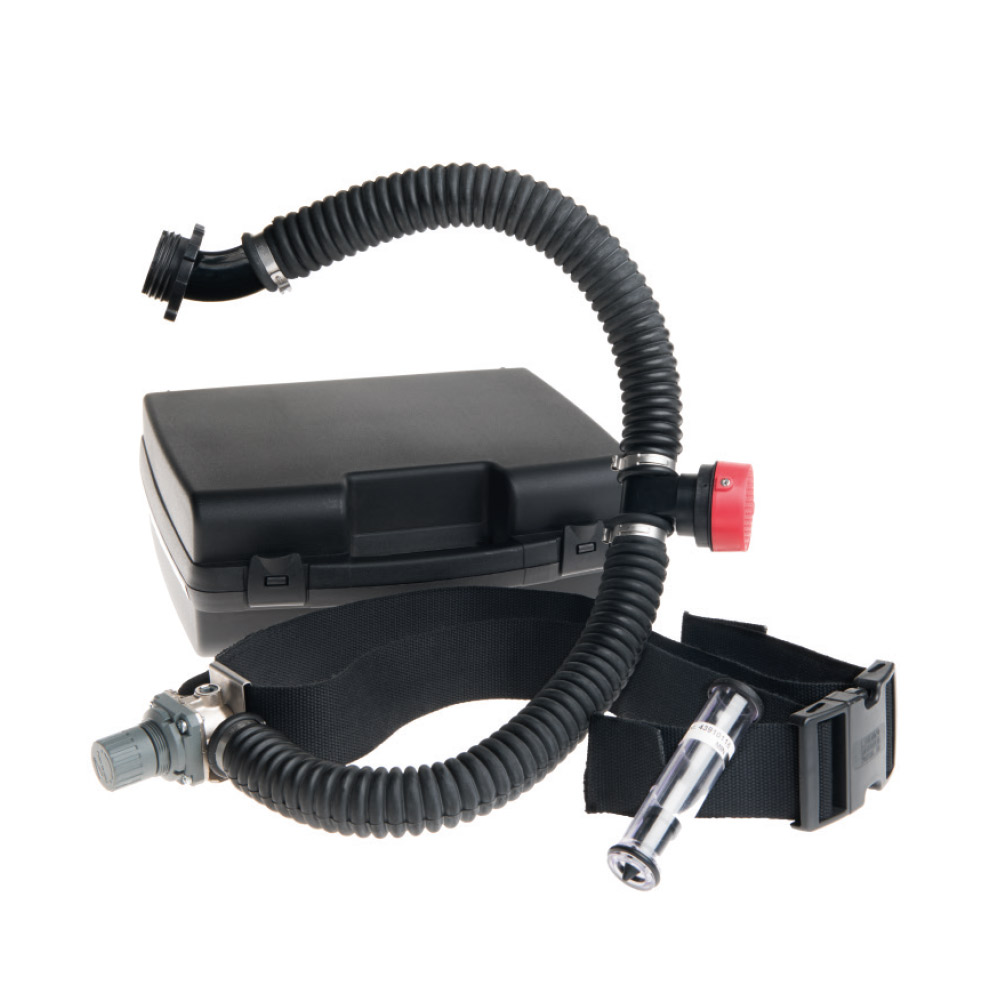

Airline FC
Constant flow type air supply for use with masks with EN 148/1 attachment. Airline FC consists of: continuous flow regulator adjustable by means of a turning knob; synthetic material belt; corrugated rubber hose with swivel, EN 148/1 thread and overpressure valve; quick release couplings. The breathable compressed air has to be (EN 12021) supplied at a pressure between 6 and 8 bar.
Features
Auxiliary fitting available on request (it allows the use of pneumatic tools). The apparatus is supplied inside a shock resistant plastic carrying case for safe storage. Complying with EN 14594. N.B. SELECTA or SFERA full face mask has to be ordered separately.
• Continuous flow type air supply for use with masks with EN 148/1 attachment. Complying with EN 14594.
• The flow regulator allows air supply adjustment from a minimum flow of 120 l/min to 300 l/min and over.
• The control knob can be locked into any position so that the set airflow will not vary.
• The breathable compressed air has to be (EN 12021) supplied at a pressure between 6 and 8 bar.
• The auxiliary connection allows the use of pneumatic tools.
MAIN COMPONENTS
• Continuous flow regulator adjustable by means of a turning knob. Synthetic material belt.
• Corrugated rubber hose with swivel and EN 148/1 thread and overpressure valve.
• Quick release couplings.
• Auxiliary fitting available on request.
• The apparatus is supplied inside a shock resistant plastic carrying case for safe storage.
Sectors
Industrial
Chemical-Pharmaceutical Industry| Immagine prodotto | Prodotto | Descrizione | Codice |
|---|---|---|---|
Airline FC | Without auxiliary fitting. | 43442050 | |
Airline FC | With auxiliary socket (for small tool use): | 43442051 |
Airline FC | Without auxiliary fitting. | 43442050 | |
Airline FC | With auxiliary socket (for small tool use): | 43442051 |
Specification sheets
Certifications
Conformity Statements
Instructions

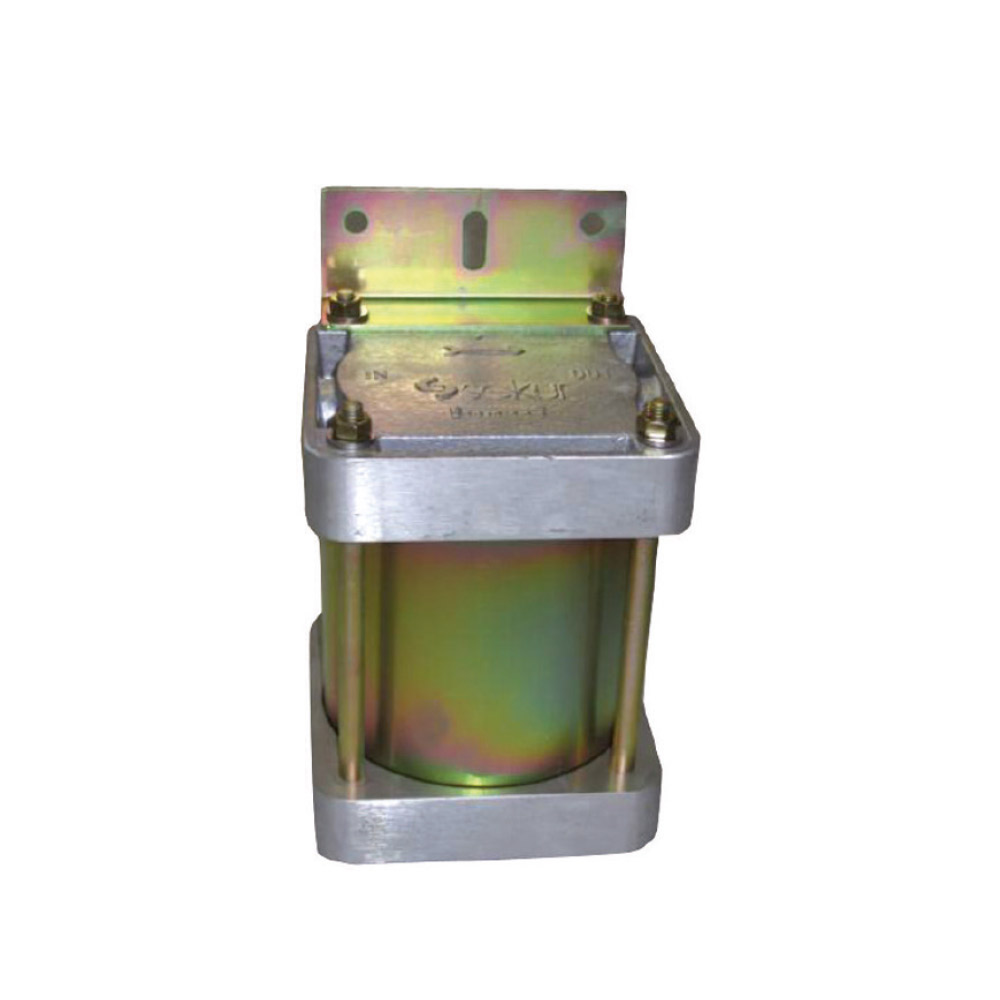

To be applied on the compressed air network downstream of a condensate filter and near the connection to one or two AIRLINE. It consists of a sturdy metal housing enclosing two P3-class aerosol filters and an activated carbon cartridge to stop any fine particles, odors or harmful gases that may be present in the compressed air. The filter elements are easily replaceable. | 43442032 |

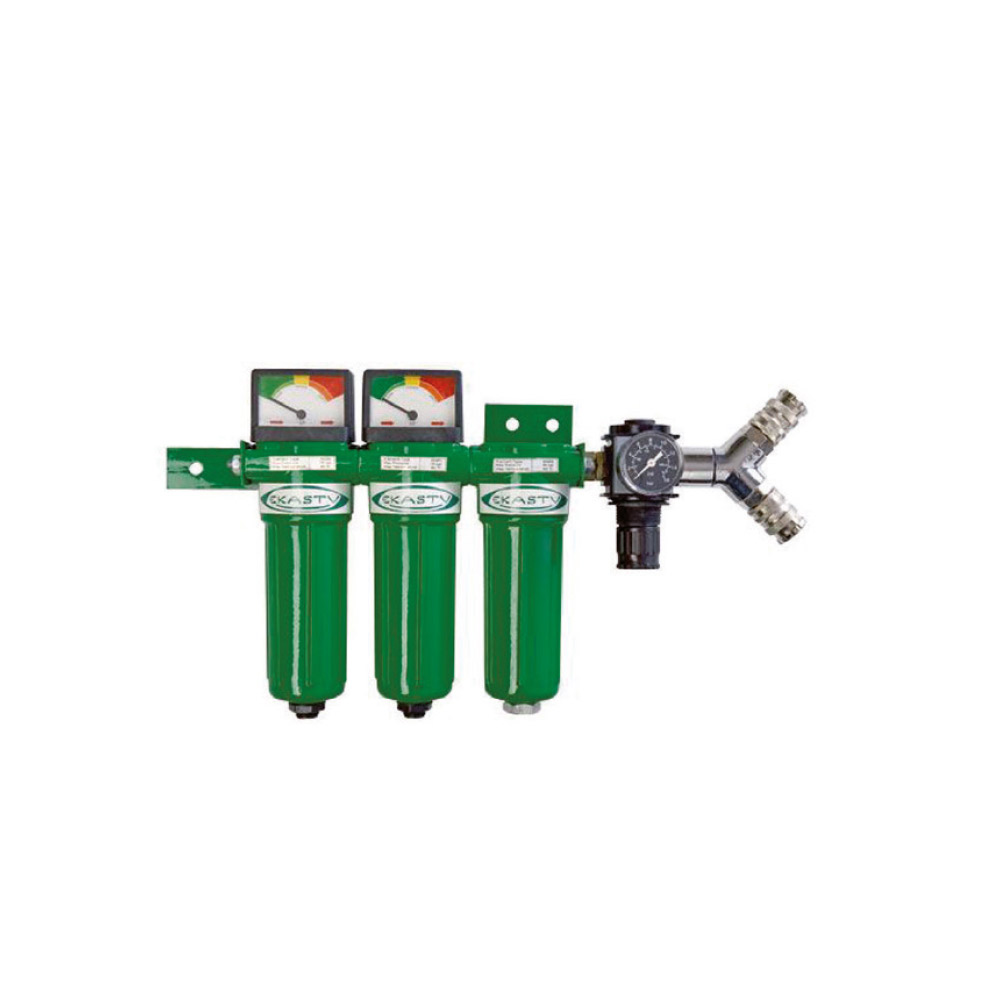

3-level combined filter (with submicro and active charcoal filter) for compressed air on assembly points or from compressors whose working order is not permanently monitored and which are not regularly maintained. | 44200071 |

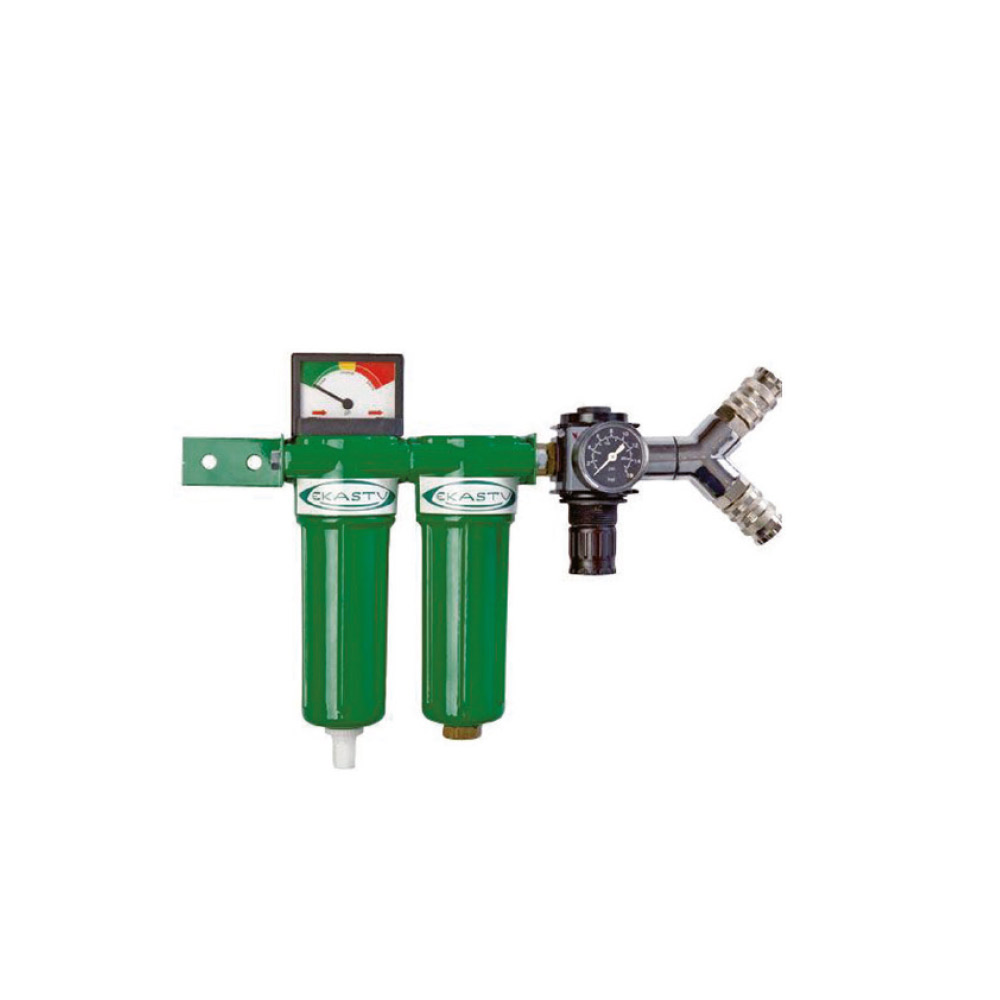

2-level combined filter (with submicro-and active charcoal filter) for precleaned air from factory compressed air plant or compressors in good working order with regular maintenance. With automatic condensate outlet and integrated pressure gauge. Equipped with high-quality pressure reducer or respective regulator, for necessary operating pressure of the respiratory protective device. | 44200070 |
T-connector for connection between compressor and medium pressure pipe (for multiple users). Make sure the flow rate and pressure are adequate. (Flow rate for 2 operators: 600 l/m, pressure: 6/8 bar). | 43431018 |

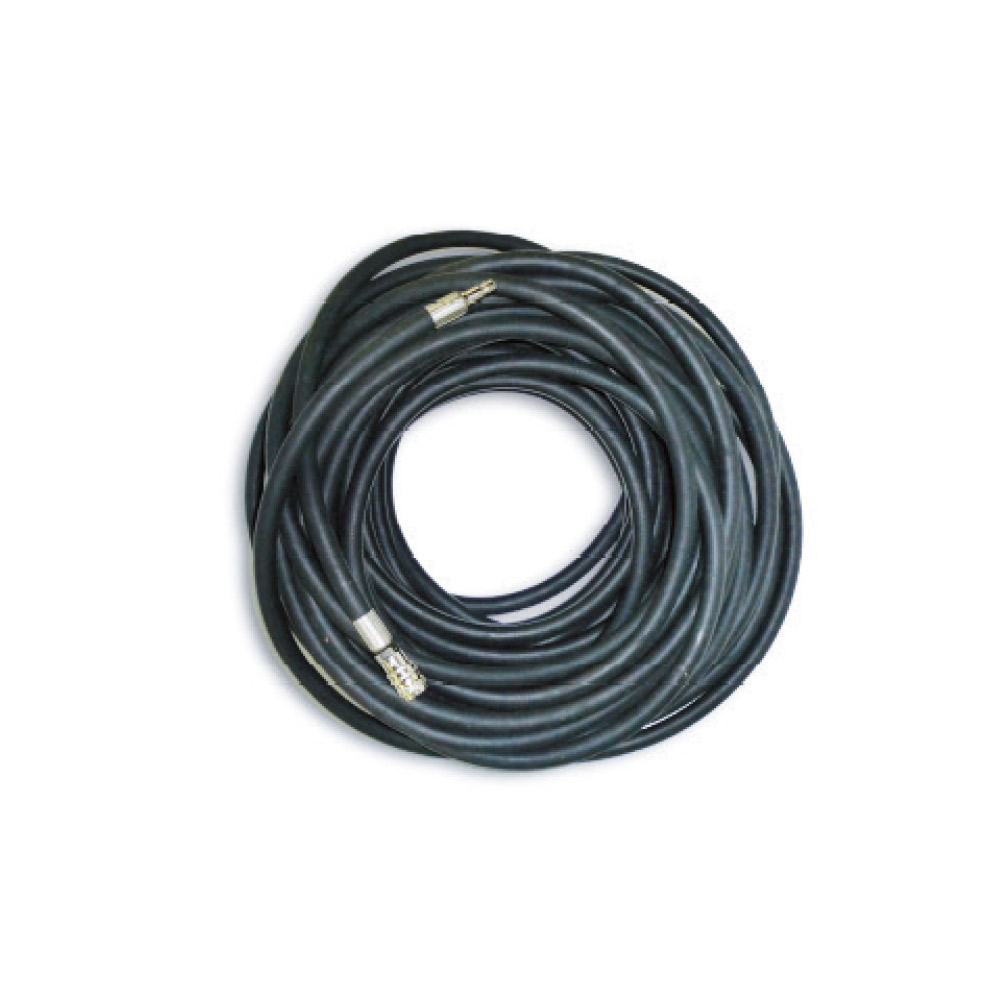

Length. 10 m. | 43430962 |
Length. 20 m. | 43431058 |
Length. 30 m. | 43430969 |
Length. 40 m. | 43430970 |
Length. 50 m. | 43430971 |
