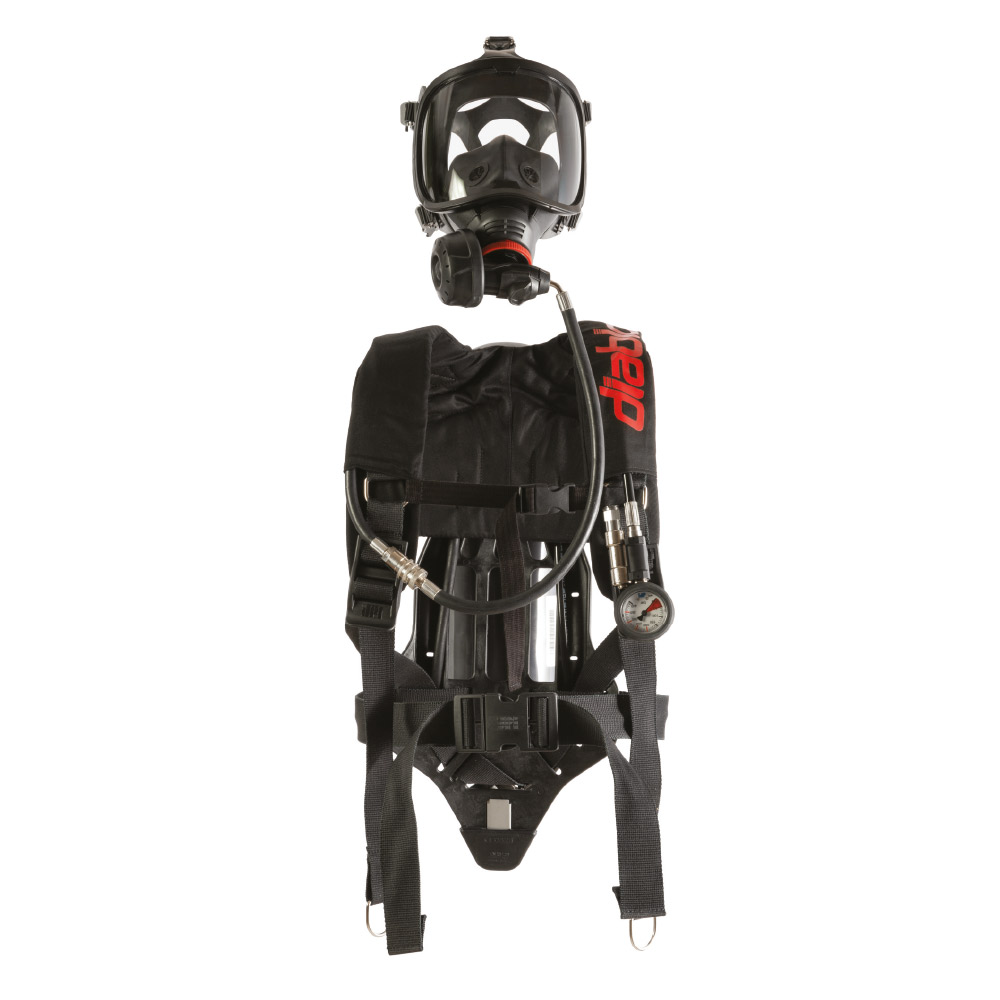

Diablo Advanced
Diablo Advanced is a high-performance breathing apparatus, for use in high-risk environments with oxygen deficiency. The Diablo Advanced – Type 1 self-contained breathing apparatus is available in an ATEX-certified version for potentially explosive atmospheres upon request.
- Type 1 configuration is available only with light harness.
- Type 2 is available with padded or light harness.
TOTAL PROTECTION
COMFORTABLE
RELIABLEVIEW 360°
Diablo Advanced E550, Padded Shoulder Pad, Idea Mask
VIEW 360°
Diablo Advanced E550, Light Harness, Idea Mask
VIEW 360°
Diablo Advanced, Padded Shoulder Pad, Idea Mask
Features
Diablo Advanced range includes self-contained open circuit breathing apparatuses with full face mask and demand valve, in compliance with EN 137.
The Diablo Advanced (Type 1) is available, on request, for use in a potentially explosive atmosphere. The Diablo Advanced is Type 1, for general use, and also available in the Type 2 version, which positively passed the flash-over test. For Type 2 configurations with Light harness, please put a “L” after the item number.
This test involves an exposure of the device to heat and flame for 10 seconds at 900°, followed by a drop. During and after the test the apparatus continues to work granting positive pressure inside the mask and maintaining self extinguishing feature.
Moreover, DIABLO ADVANCED is available in three additional configurations which allow the connection to a second operator (OUT), a second source (IN) or to both (IN&OUT).
Certifications:
The self-contained breathing apparatus complies with EN 137 and EU Regulation 2016/425.
Performance
User friendly
Possibility of configuration
Sturdiness
Easy maintenanceSectors
Firefighting
Petrochemical
Chemical-Pharmaceutical Industry
Type 2, C 607 SP/A EPDM DIN 300 | 43420300 |
Type 2, C 607 SP/A Silicone DIN 300 | 43420310 |
Type 2, Sfera SP/A EPDM DIN 300 | 43421300 |
Type 2, Sfera SP/A Silicone DIN 300 | 43421310 |
Type 2, IDEA SP/A EPDM DIN 300 | 43520300 |
Type 2, IDEA SP/A Silicone DIN 300 | 43520310 |
Type 2, IDEA Plug-in EPDM DIN 300 | 43521300 |
Type 2, IDEA Plug-in Silicone DIN 300 | 43521310 |
Type 1 light, without second user, C607 SP/A, screw spout, DIN 300 | 43429009L |
Type 1 light, with second user, C607 SP/A, screw spout, DIN 300 | 43429011L |
Type 1 light, without second user, C607 SP/A, Plug-In dispenser, DIN 300 | 43429058L |
Type 1 light, with screw spout, IDEA SP/A, DIN 300 | 43520001L |
Type 1 light, with second user, IDEA SP/A, screw spout, DIN 300 | 43520002L |
Type 1 light, without second user, SFERA SP/A, screw spout, DIN 300 | 43429108L |
Type 1 light, with second user, SFERA SP/A, screw spout, DIN 300 | 43429109L |
Type 1 light, without second user, SFERA SP/A, Plug-In dispenser, DIN 300 | 43429131L |
Type 2, with second user, SFERA SP/A, Plug-In dispenser, DIN 300 | 43429143 |
Specification sheets
Certifications
Conformity Statements
Instructions
6.8 liters at 300 bar, DIN connection, unlimited life, PET liner, complete with valve without pressure gauge (Autonomy about 50 min.) |
Automatic switch valve from mains air to self-contained breathing apparatus in back up (SNM). The device automatically intervenes if power from the mains is cut off or if its pressure drops to insufficient values to support breathing. Its activation is signaled by a beeper that emits a sound at over 90 dB. Complies with standard EN 14593-1. |
The emergency semi-mask kit includes an EPDM semi-mask, an E400 dispenser with 80 cm MP tube with coupling, and a fabric storage bag. For connection to the second Diablo self-contained breathing apparatus. |
If you have a C607 SP/A or Sfera SP/A mask that is not in ESA, you must purchase the quick-connect adapter kit in order to use the Plug In nozzle. The kit must be screwed onto the mask nozzle and tightened appropriately. |
E 400 APQ dispenser with quick connect coupling to C607 or Sfera full-face mask. This version, is equipped with the Plug In system, which complies with DIN 58600 and is also certified by the German Fire Department. Equipped with 45 cm hose. |
Synthetic resin case to house the DIABLO rebreather, complete with mask, regulator and cylinder, protecting it from shock and vibration. |
Steel self-contained breathing apparatus cabinet in red color. 8/10 thickness. Clear plexiglass inspection window, internal support for self-contained breathing apparatus cylinder support. Applicable stickers as pictured. Dimensions: mm 300 D x 400 L x 850 h. |
